Combikit: Vitamin B1, B2 and B6 in Plasma / Whole Bl；血漿/全血中的維生素B1、B2和B6質(zhì)譜方案
2025-04-27Vitamin B1, B2 and B6 (Combikit)
The combikit enables the combined measurement of the vitamins B1, B2, and B6. It consists of the chromatography kit (order no. 27000) and the respective sample preparation kits (order nos. 27001, 27002, 27006).
The chromatography is performed with a single column for all B-vitamins in subsequent series of measurement. For switching the parameter (e.g. vitamin B1 –> vitamin B2) the parameter settings have to be changed (see HPLC parameters). By selecting the respective sample preparation kits, the customer is flexible to choose the parameters according to his needs.
Sample Preparation

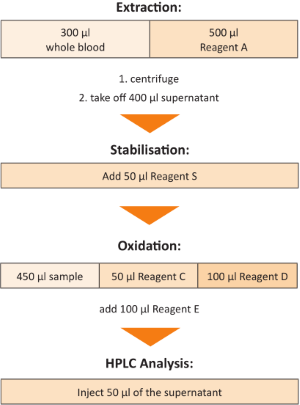

Vitamin B1

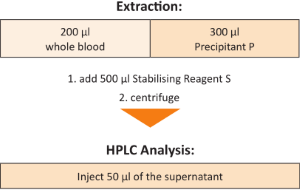

Vitamin B2

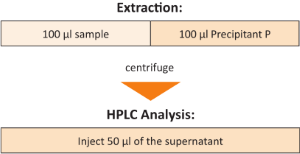

Vitamin B6
Chromatography
Vitamin B1

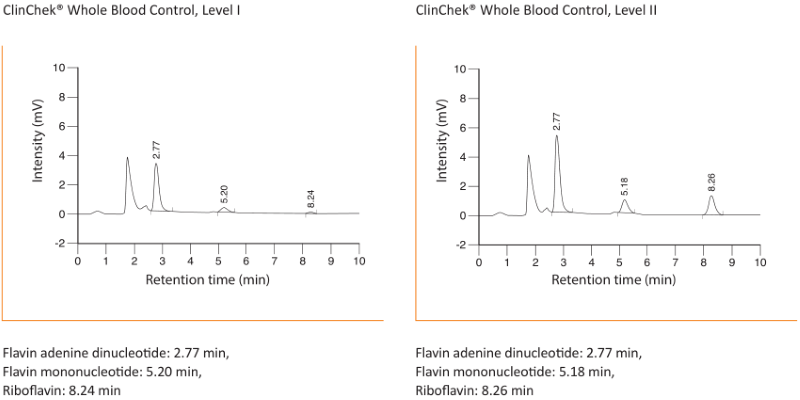

Vitamin B2

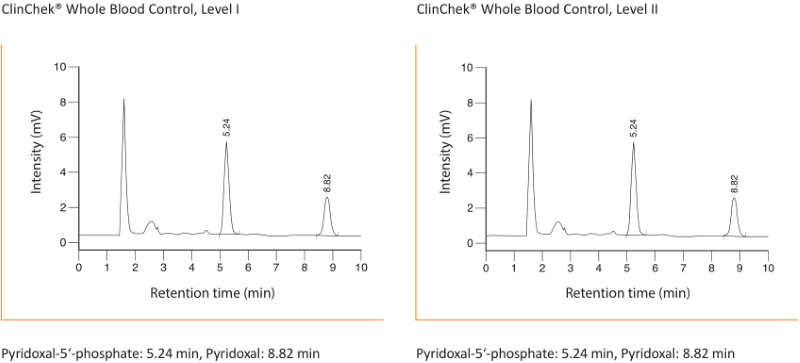

Vitamin B6
Ordering Information
| Order No. | Description | Quantity |
|---|---|---|
| BYRI-27000 | ClinRep? Chromatography Kit for Vitamin B1, B2, B6 | 1 pce. |
| for 1000 assays | ||
| Contents: | ||
| Mobile Phase A | 4 x 27008 | |
| Mobile Phase B | 2 x 27009 | |
| Analytical Column with test chromatogram | 1 x 27030 | |
| Guard Columns | 2 x 27033 | |
| Replacement filter for Stainless steel prefilter holder | 1 x FK5821 | |
| Separately available components: | ||
| BYRI-27008 | Mobile Phase A | 2400 ml |
| BYRI-27009 | Mobile Phase B | 1000 ml |
| BYRI-27030 | Analytical Column with test chromatogram | 1 pce. |
| BYRI-27033 | Guard Columns | 5 pcs. |
| BYRI-FK5821 | Replacement filter for Stainless steel prefilter holder | 10 pcs. |
| Accessories: | ||
| BYRI-27032 | Guard Column Holder incl. 1 Guard Column | 1 pce. |
| BYRI-FK2000 | Peristaltic pump (flow rate: 0.2 ml/min) | 1 pce. |
| BYRI-FK2001 | Replacement tubings for peristaltic pump | 2 pcs. |
| BYRI-FK5121 | T-Union (PEEK), 1/16″ | 1 pce. |
| BYRI-FK5810 | PEEK-tubing (connection of prefilter and column) | 1 pce. |
| BYRI-FK5820 | Stainless steel prefilter holder incl. 1 prefilter | 1 pce. |
| ClinChek? Controls: | ||
| BYRI-8870 | Serum Control, lyophil.Level I | 10 x 5 ml |
| BYRI-8871 | Serum Control, lyophil.Level II | 10 x 5 ml |
| BYRI-8872 | Serum Control, lyophil.Level III | 10 x 5 ml |
| BYRI-8873 | Serum Control, lyophil.Level I, II, III | 3 x 3 x 5 ml |
| BYRI-8874 | Whole Blood Control, lyophil.Level I | 10 x 2 ml |
| BYRI-8875 | Whole Blood Control, lyophil.Level II | 10 x 2 ml |
| BYRI-8876 | Whole Blood Control, lyophil.Level I, II | 2 x 5 x 2 ml |
| Order No. | Description | Quantity |
| BYRI-27001 | ClinRep? Sample Preparation Kit | 1 pce. |
| for Vitamin B1 in Whole Blood | ||
| for 100 assays | ||
| Contents: | ||
| Test Solution | 1 x 24014 | |
| Whole Blood Calibrator, lyophil. | 1 x 24513 | |
| Sample Preparation Vials | 2 x 24020 | |
| Reagent A | 1 x 24021 | |
| Reagent C | 1 x 24023 | |
| Reagent D | 1 x 24024 | |
| Reagent E | 1 x 24025 | |
| Reagent N | 1 x 24626 | |
| Reagent S | 1 x 24027 | |
| BYRI-27002 | ClinRep? Sample Preparation Kit | 1 pce. |
| for Vitamin B2 in Whole Blood | ||
| for 100 assays | ||
| Contents: | ||
| Test Solution, lyophil. | 1 x 25014 | |
| Reconstitution Solution R | 1 x 25015 | |
| Whole Blood Calibrator, lyophil. | 1 x 24513 | |
| Sample Preparation Vials | 1 x 25020 | |
| Precipitant P | 1 x 25021 | |
| Stabilising Reagent S | 1 x 25022 | |
| BYRI-27006 | ClinRep? Sample Preparation Kit | 1 pce. |
| for Vitamin B6 in Plasma / Whole Blood | ||
| for 100 assays | ||
| Contents: | ||
| Standard Solution | 1 x 26011 | |
| Serum Calibrator, lyophil. | 1 x 26013 | |
| Sample Preparation Vials | 1 x 26020 | |
| Precipitant P | 1 x 26021 | |
| Reagent N | 1 x 24626 |
